Easy Load Tap-N-Go Trimmer Head WB-1221 & WB-2221

You are here:Home/Easy Load, Tap-N-Go/Easy Load Tap-N-Go Trimmer Head WB-1221 & WB-2221
Easy Load Tap-N-Go Trimmer Head WB-1221 & WB-2221 2017-07-07T02:46:19+00:00

Project Description

  • Easy Load Tap-N-Go Trimmer Head WB-1221 & WB-2221 Front

EASY LOAD TAP-N-GO TRIMMER HEAD WB-1221 & WB2221

  • Product Name: Trimmer Head/Brushcutter Head

  • Model No.: WB-1221 & WB-2221

  • Head Diameter:  Ø4″ & Ø5″

  • Matched Trimmer Line: Ø2.4mm/Ø0.095″ or other standard trimmer lines

  • Cord Feed: Semic-automatic(Tap-N-Go)

  • Matched Trimmer/Brushcutter: fits most straight shaft trimmers and brushcutters

Ask for Quote

Grass-2HIGHLIGHTS

  • Easy line refilling without disassembling any part of the trimmer head to save your time

STEP 1

Easy Load Tap-N-Go Trimmer Head WB-1221 P1

Align arrow on knob with eyelet

STEP 2

Feed approximately 12′ of trimmer line through eyelet

STEP 3

Reload by simply turning large knob and cutting line to equal lengths

  • Smooth and durable, the large bottom cover taps on ground to advance line and allows head to glide while trimming

  • Aluminum retainers , to prevent the line from breakage during the work

Easy Load Tap-N-Go Trimmer Head WB-1221 & WB-2221 Eyelet
  • Line tensioning system with split spool reduces head vibration.

  • Adaptor bolts available to fit most straight shaft trimmers and brush cutters

Grass-2Drawing & Spare Parts

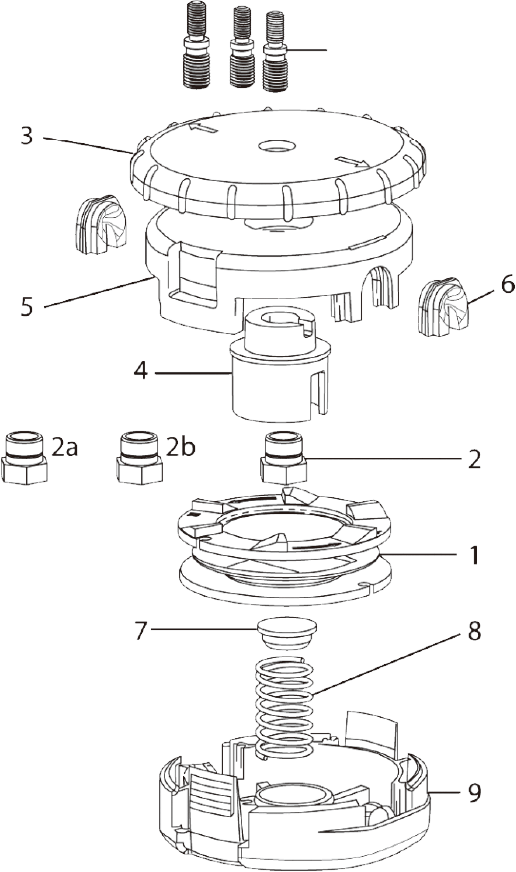

Easy Load Tap-N-Go Trimmer Head WB-1221 DR

1

55-348

Spool LH

2

55-287

Bushing 10mm×1.25 LH

2a

55-288

Bushing 10mm×1.00 LH

2b

55-289

Bushing 8mm×1.25 LH

3

55-346

Knob

4

55-295

Core

5

55-347

Eyelet Carrier

6

55-336

Eyelet

7

55-339

Cap

8

55-344

Spring

9

55-349

Cover

10

55-337

Stud 7mm×1.0 LH

11

55-338

Stud 8mm×1.25 LH

12

55-340

Stud 10mm×1.25 LH
