Easy Load Tap-N-Go Trimmer Head WB-3243

You are here:Home/Easy Load, Tap-N-Go/Easy Load Tap-N-Go Trimmer Head WB-3243
Easy Load Tap-N-Go Trimmer Head WB-3243 2017-07-07T01:58:33+00:00

Project Description

  • Easy Load Tap-N-Go Trimmer Head WB-3243

PATENT EASY LOAD TAP-N-GO TRIMMER HEAD WB-3243

  • Product Name: Trimmer Head/Brushcutter Head

  • Model No.: WB-3243

  • Head Diameter:  Ø120mm

  • Matched Trimmer Line: Ø2.40mm/Ø0.095″or other standard trimmer lines

  • Cord Feed: Semic-automatic(Tap-N-Go)

  • Matched Trimmer/Brushcutter: fits the most trimmers & brushcutters on the market

Ask for Quote

Grass-2HIGHLIGHTS

  • New Patent Easy Replacement Trimmer Head

  • Easy line refilling without disassembling any part of the trimmer head to save your time

  • Specially designed knob, easier to turn by users

Easy Load Tap-N-Go Trimmer Head WB3243 Knob
  • Aluminum retainers , to prevent the line from breakage during the work

Easy Load Tap-N-Go Trimmer Head WB-3243 Eyelet
  • Adaptor bolts available to fit most brands and models

  • Easy to open the head by pushing buttons for maintenance and cleaning

Grass-2Drawing & Spare Parts

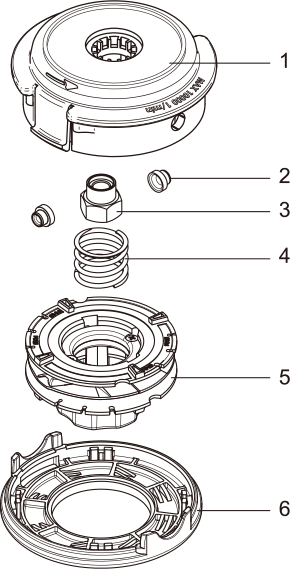

Easy Load Tap-N-Go Trimmer Head WB-3243 Drawing

1

60739296

Housing

2

60739297

Line Retainer

3

60739298

Adaptor M 8×1.25 Left Male (fits EMAK only)

3

60739299

Adaptor M 8×1.25 Left Female

3

60739200

Adaptor M 8×1.25 Left Male

3

60739201

Adaptor M 10×1.00 Left Female (fits ST only)

3

60739202

Adaptor M 10×1.25 Left Female

3

60739203

Adaptor M 10×1.25 Left Female (fits HU only)

3

60739204

Adaptor M 10×1.25 Left Male

3

60739205

Adaptor M 10×1.50 Left Female (fits HU only)

3

60739206

Adaptor M 12×1.50 Left Female

3

60739207

Adaptor M 12×1.75 Left Female (fits HU only)

3

60739208

Adaptor M 14×1.50 Left Female (fits ST only)

4

60739209

Spring

5

60739210

Spool without Line

6

60739211

Upper Cover

Ask for Quote
