Project Description

  • Easy Load Tap-N-Go Trimmer Head WB-1235

EASY LOAD TAP-N-GO TRIMMER HEAD WB-1235

  • Product Name: Trimmer Head/Brushcutter Head

  • Model No.: WB-1235

  • Head Diameter:  Ø130mm/Ø5.12″

  • Matched Trimmer Line: Ø2.40mm/Ø0.095″ recommended or other standard trimmer lines

  • Cord Feed: Semic-automatic(Tap-N-Go)

  • Matched Trimmer/Brushcutter: fits the most trimmers & brushcutters on the market

Ask for Quote

Grass-2HIGHLIGHTS

  • Easy line refilling without disassembling any part of the trimmer head to save your time

STEP 1

Easy Load Tap-N-Go Trimmer Head WB-1235 P1

Insert line from one eyelet to opposite one

STEP 2

Turn the knob to easily load the nylon line

STEP 3

Easy Load Tap-N-Go Trimmer Head WB-1235 P3

Pull the trimmer line on both ends

  • The trimmer line is fed by tapping the cutting head on the ground.

  • Strong and bumps resistant, longer lifetime

  • Double line, for cutting and thinning

  • Adaptor bolts available to fit most trimmers and brushcutters

Grass-2Drawing & Spare Parts

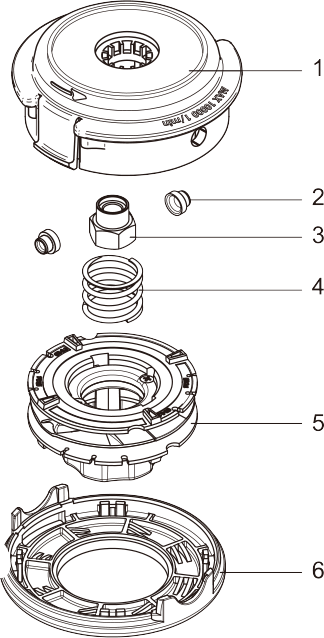

Easy Load Trimmer Head WB-1235 Drawing

1

50719036

Housing

2

50719037

Line retainer

3

50719038

Adaptor M 8×1.25 Left Male (fits EMAK only)

3

50719039

Adaptor M 8×1.25 Left Female

3

50719040

Adaptor M 8×1.25 Left Male

3

50719041

Adaptor M 10×1.00 Left Female (fits ST only)

3

50719042

Adaptor M 10×1.25 Left Female

3

50719043

Adaptor M 10×1.25 Left Female (fits HU Only)

3

50719044

Adaptor M 10×1.25 Left Male

3

50719045

Adaptor M 10×1.50 Left Female (fits HU only)

3

50719046

Adaptor M 12×1.50 Left Female

3

50719047

Adaptor M 12×1.75 Left Female (fits HU Only)

3

50719048

Adaptor M 14×1.50 Left Female (fits ST only)

4

50719049

Spring

5

50719050

Spool without Line

6

50719051

Upper Cover
