Easy Load Tap-N-Go Universal Trimmer Head WB-1215

You are here:Home/Easy Load, Tap-N-Go, Universal/Easy Load Tap-N-Go Universal Trimmer Head WB-1215
Easy Load Tap-N-Go Universal Trimmer Head WB-1215 2017-08-09T06:20:50+00:00

Project Description

  • Easy Load Tap-N-Go Trimmer Head WB-1215

EASY LOAD TAP-N-GO UNIVERSAL TRIMMER HEAD WB-1215

  • Product Name: Trimmer Head/Brushcutter Head

  • Model No.: WB-1215

  • Head Diameter:  Ø120mm/Ø4.72″

  • Matched Trimmer Line: Ø2.40mm/Ø0.095″ recommended or other standard trimmer lines

  • Cord Feed: Semic-automatic(Tap-N-Go)

  • Matched Trimmer/Brushcutter: fits the most trimmers & brushcutters on the market

Ask for Quote

Grass-2HIGHLIGHTS

  • Universal mounting without adaptor

  • Easy line refilling without disassembling any part of the trimmer head to save your time

STEP 1

WB-1216 STEP1-1

Insert line from one eyelet to opposite one

STEP 2

WB-1216 STEP2-1

Turn the knob to easily load the nylon line

STEP 3

Pull the trimmer line on both ends

  • Heavy duty nylon knob, strong and bumps resistant

Easy Load Tap-N-Go Trimmer Head WB-1217 Knob
  • Aluminum retainers , to prevent the line from breakage during the work

Aluminum Retainer WB1216-1
  • Easy to open the head by pushing buttons for maintenance and cleaning

Grass-2Drawing & Spare Parts

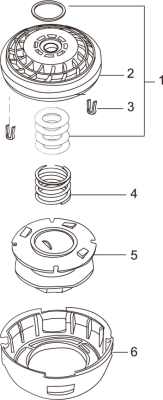

Easy Load Tap-N-Go Trimmer Head WB-1215 Drawing

1

50719134

Kit of adaptor washers and reduction rings

2

50719135

Under Cover

3

50719136

Line Retainer

4

50719137

Spring

5

50719138

Spool without Line

6

50719139

Housing
