Heavy Duty Tap-N-Go Trimmer Head WB-1206

You are here:Home/Trimmer Heads/Tap-N-Go/Heavy Duty Tap-N-Go Trimmer Head WB-1206
Heavy Duty Tap-N-Go Trimmer Head WB-1206 2017-07-04T07:53:14+00:00

Project Description

  • Heavy Duty Tap-N-Go Trimmer Head WB-1206

HEAVY DUTY TAP-N-GO TRIMMER HEAD WB-1206

  • Product Name: Trimmer Head/Brushcutter Head

  • Model No.: WB-1206

  • Head Diameter:  Ø130mm/Ø5.12″

  • Matched Trimmer Line: Ø2.4mm/Ø0.095″, Ø3.0mm/Ø0.120″

  • Cord Feed: Semi-automatic(Tap-N-Go)

  • Matched Trimmer/Brushcutter: fits most of trimmers and brushcutters up to 51cc

Ask for Quote

Grass-2HIGHLIGHTS

  • Heavy duty semi-automatic trimmer head with shining surface ideal for heavy grass and heavy weeds

  • The nylon line is released from the trimmer head by bumping the spool on the ground.

  • Adaptor bolts available for most of trimmer heads and brushcutters up to 51cc

Grass-2Drawing & Spare Parts

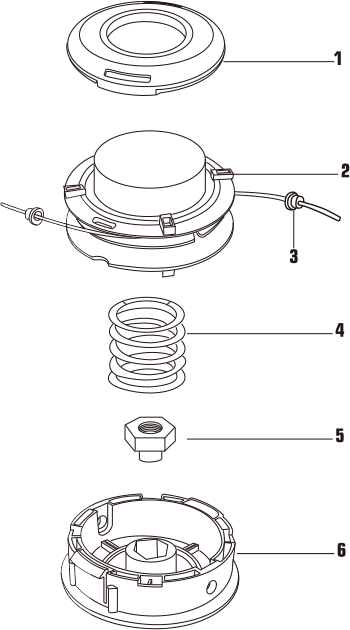

Heavy Duty Tap-N-Go Trimmer Head WB-1206 Drawing

1

5070601

Upper Cover

2

5070602

Spool without Line

3

5070603

Line Retainer

4

5070604

Spring

5

5070605

Adaptor M 8×1.25 Left Male(fits EMAK only)

5

5070606

Adaptor M 8×1.25 Left Female

5

5070607

Adaptor M 8×1.25 Left Male

5

5070608

Adaptor M 10×1.00 Left Female(fits ST only)

5

5070609

Adaptor M 10×1.25 Left Female

5

5070610

Adaptor M 10×1.25 Left Male

5

5070611

Adaptor M 10×1.50 Left Male

5

5070612

Adaptor M 12×1.50 Left Female

5

5070613

Adaptor M 12×1.75 Left Female

5

5070615

Housing
