Tap-N-Go Trimmer Head WB-1201

You are here:Home/Trimmer Heads/Tap-N-Go/Tap-N-Go Trimmer Head WB-1201
Tap-N-Go Trimmer Head WB-1201 2017-07-04T07:43:41+00:00

Project Description

  • TAP-N-GO Trimmer Head WB-1201

TAP-N-GO TRIMMER HEAD WB-1201

  • Product Name: Trimmer Head/Brushcutter Head

  • Model No.: WB-1201

  • Matched Trimmer Line: Ø2.40mm/Ø0.095″ recommended or other standard trimmer lines

  • Cord Feed: Semi-automatic(Tap-N-Go)

  • Matched Trimmer/Brushcutter: fit the most Trimmers/brushcutters on the market

Ask for Quote

Grass-2HIGHLIGHTS

  • The nylon line is released from the trimmer head by bumping the spool on the ground.

  • Double nylon monofilament line is ideal for cutting grass and light weeds.

  • Adaptor bolts available to fit most of trimmers and brushcutters

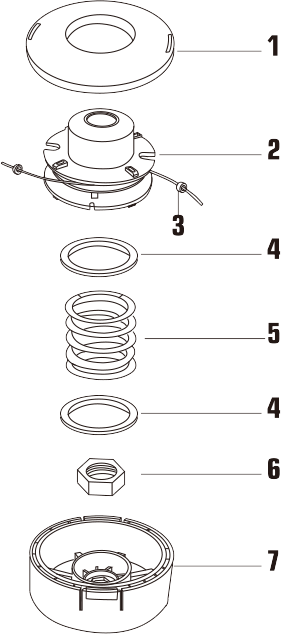

Grass-2Drawing & Spare Parts

1

5070101

Upper Cover

2

5070102

Spool without Line

3

5070103

Line Retainer

4

5070104

Plate

5

5070105

Spring

6

5070106

Adaptor M 8×1.25 Left Female

6

5070107

Adaptor M 8×1.25 Left Male

6

5070108

Adaptor M 10×1.25 Left Female

6

5070109

Adaptor M 10×1.25 Left Male

6

5070110

Adaptor M 10×1.50 Left Male

6

5070111

Adaptor M 12×1.50 Left Female

6

5070112

Adaptor M 12×1.75 Left Female

7

5070113

Housing

Ask for Quote
