Project Description

  • Tap-N-Go Trimmer Head WB-1248

TAP-N-GO TRIMMER HEAD WB-1248

  • Product Name: Trimmer Head/Brushcutter Head

  • Model No.: WB-1248

  • Matched Trimmer Line: Ø1.65mm/Ø0.065″, Ø2.00mm/Ø0.080″, Ø2.40mm/Ø0.095″, Ø2.65mm/Ø0.105″

  • Cord Feed: Semi-automatic(Tap-N-Go)

  • Matched Trimmer/Brushcutter: fits the most Trimmers/brushcutters on the market

Ask for Quote

Grass-2HIGHLIGHTS

  • The nylon line is released from the trimmer head by bumping the spool on the ground.

  • Aluminum and turning knob, strong and bumps resistant, and lasting much longer

Tap-N-Go Trimmer Head WB-1248 Knob & Turning
  •  The spool has a split design which reduces tangling and line welding, and has arrows to show the correct directional winding of the line to eliminate guesswork.

  • Two key slots to lock the trimmer line in and keep it from unwrapping while putting the cap back on the trimmer head

  • Adaptor bolts available to fit most of trimmers and brushcutters

Grass-2Drawing & Spare Parts

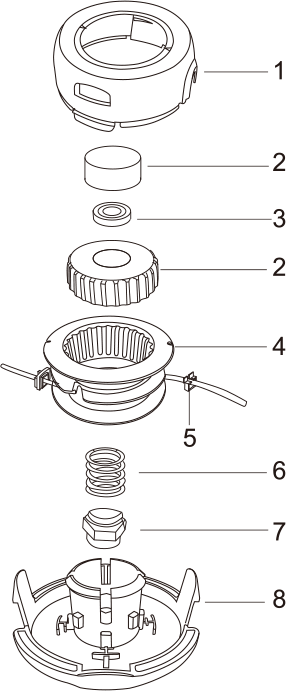

Tap-N-Go Trimmer Head WB-1248 DrawingTap-N-Go Trimmer Head WB-1239 Bolts

1

50729296

Housing

2

50729297

Top Cover

3

50729298

Bearing

4

50729299

Spool without Line

5

50729200

Line Retainer

6

50729201

Spring

7

50729202

Adaptor M 8×1.25 Left Female

7

50729203

Adaptor M 8×1.25 Left Male

7

50729204

Adaptor M 10×1.00 Left Female

7

50729205

Adaptor M 10×1.25 Left Female

7

50729206

Adaptor M 10×1.25 Left Male

7

50729207

Adaptor M 10×1.50 Left Male

7

50729208

Adaptor M 10×1.50 Left Female

7

50729209

Adaptor M 12×1.50 Left Female

7

50729210

Adaptor M 12×1.75 Left Female

8

50729212

Under Cover
