Project Description

  • Tap-N-Go Trimmer Head WB-2201

TAP-N-GO TRIMMER HEAD WB-2201

  • Product Name: Trimmer Head/Brushcutter Head

  • Model No.: WB-2201

  • Matched Trimmer Line: Ø2.4mm/Ø0.095″ recommended or other standard trimmer lines

  • Cord Feed: Semi-automatic(Tap-N-Go)

  • Matched Trimmer/Brushcutter: fits the most Trimmers/brushcutters on the market

Ask for Quote

Grass-2HIGHLIGHTS

  • The nylon line is released from the trimmer head by bumping the spool on the ground.

  • A metal inserted in the nylon tap knob extends the head’s life by reducing wear and abrasion to the nylon.

Tap-N-Go Trimmer Head WB-2201 Knob
  • Double nylon monofilament line is ideal for cutting grass and light weeds.

  • Adaptor bolts available to fit most of trimmers and brushcutters

Grass-2Drawing & Spare Parts

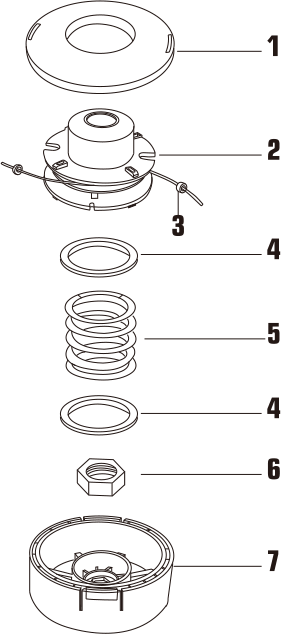

Tap-N-Go Trimmer Head WB-2201 Drawing

1

6070101

Upper Cover

2

6070102

Spool without Line

3

6070103

Line Retainer

4

6070104

Plate

5

6070105

Spring

6

6070106

Adaptor M 8×1.25 Left Female

6

6070107

Adaptor M 8×1.25 Left Male

6

6070108

Adaptor M 10×1.25 Left Female

6

6070109

Adaptor M 10×1.25 Left Male

6

6070110

Adaptor M 10×1.50 Left Male

6

6070111

Adaptor M 12×1.50 Left Female

6

6070112

Adaptor M 12×1.75 Left Female

7

6070113

Housing
