Tap-N-Go Trimmer Head WB-2240

You are here:Home/Trimmer Heads/Tap-N-Go/Tap-N-Go Trimmer Head WB-2240
Tap-N-Go Trimmer Head WB-2240 2017-07-06T13:08:40+00:00

Project Description

  • Tap-N-Go Trimmer Head WB-2240

TAP-N-GO TRIMMER HEAD WB-2240

  • Product Name: Trimmer Head/Brushcutter Head

  • Model No.: WB-2240

  • Head Diameter:  Ø145mm/Ø5.71″

  • Matched Trimmer Line: Ø1.65mm/Ø0.065″, Ø2.00mm/Ø0.080″, Ø2.40mm/Ø0.095″, Ø2.65mm/Ø0.105″

  • Cord Feed: Semi-automatic(Tap-N-Go)

  • Matched Trimmer/Brushcutter: fits the most Trimmers/brushcutters on the market

Ask for Quote

Grass-2HIGHLIGHTS

  • Double line, for cutting and thinning

  • The nylon line is released from the trimmer head by bumping the spool on the ground.

  •  The spool has a split design which reduces tangling and line welding, and has arrows to show the correct directional winding of the line to eliminate guesswork.

  • Two key slots to lock the trimmer line in and keep it from unwrapping while putting the cap back on the trimmer head

  • Adaptor bolts available to fit most of trimmers and brushcutters

Grass-2Drawing & Spare Parts

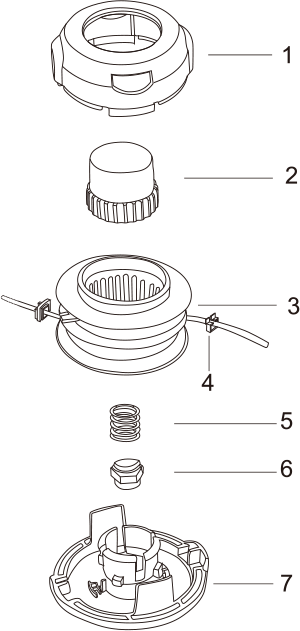

Tap-N-Go Trimmer Head WB-2240 DrawingTap-N-Go Trimmer Head WB-1239 Bolts

1

50719296

Upper Cover

2

50719297

Top Cover

3

50719298

Spool without Line

4

50719299

Line Retainer

5

50719200

Spring

6

50719201

Adaptor M 8×1.25 Left Female

6

50719202

Adaptor M 8×1.25 Left Male

6

50719203

Adaptor M 10×1.00 Left Female

6

50719204

Adaptor M 10×1.25 Left Female

6

50719205

Adaptor M 10×1.25 Left Male

6

50719206

Adaptor M 10×1.50 Left Male

6

50719207

Adaptor M 10×1.50 Left Female

6

50719208

Adaptor M 12×1.50 Left Female

6

50719209

Adaptor M 12×1.75 Left Female

7

50719210

Under Cover
