Tap-N-Go Trimmer Head WB-2248

You are here:Home/Trimmer Heads/Tap-N-Go/Tap-N-Go Trimmer Head WB-2248
Tap-N-Go Trimmer Head WB-2248 2017-07-07T07:42:18+00:00

Project Description

  • Tap-N-Go Trimmer Head WB-2248

TAP-N-GO TRIMMER HEAD WB-2248

  • Product Name: Trimmer Head/Brushcutter Head

  • Model No.: WB-2248

  • Head Diameter:  Ø145mm/Ø5.71″

  • Matched Trimmer Line: Ø1.65mm/Ø0.065″, Ø2.00mm/Ø0.080″, Ø2.40mm/Ø0.095″, Ø2.65mm/Ø0.105″

  • Cord Feed: Semi-automatic(Tap-N-Go)

  • Matched Trimmer/Brushcutter: fits the most Trimmers/brushcutters on the market

Ask for Quote

Grass-2HIGHLIGHTS

  • The nylon line is released from the trimmer head by bumping the spool on the ground.

  • Aluminum turning knob, strong and bumps resistant, and lasting much longer

Tap-N-Go Trimmer Head WB-1248 Knob & Turning
  •  The spool has a split design which reduces tangling and line welding, and has arrows to show the correct directional winding of the line to eliminate guesswork.

  • Two key slots to lock the trimmer line in and keep it from unwrapping while putting the cap back on the trimmer head

  • Adaptor bolts available to fit most of trimmers and brushcutters

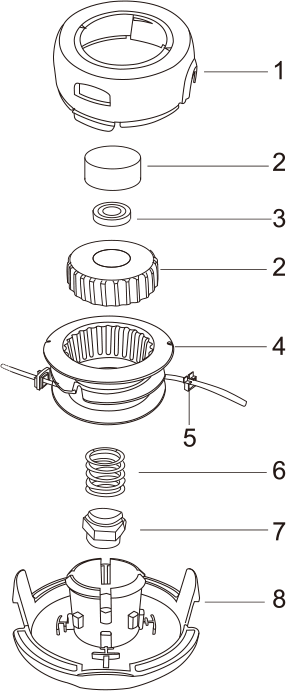

Grass-2Drawing & Spare Parts

Tap-N-Go Trimmer Head WB-2248 DrawingTap-N-Go Trimmer Head WB-1239 Bolts

1

50729396

Housing

2

50729397

Top Cover

3

50729398

Bearing

4

50729399

Spool without Line

5

50729300

Line Retainer

6

50729301

Spring

7

50729302

Adaptor M 8×1.25 Left Female

7

50729303

Adaptor M 8×1.25 Left Male

7

50729304

Adaptor M 10×1.00 Left Female

7

50729305

Adaptor M 10×1.25 Left Female

7

50729306

Adaptor M 10×1.25 Left Male

7

50729307

Adaptor M 10×1.50 Left Male

7

50729308

Adaptor M 10×1.50 Left Female

7

50729309

Adaptor M 12×1.50 Left Female

7

50729310

Adaptor M 12×1.75 Left Female

8

50729311

Under Cover
